Drill machines are indispensable tools that have revolutionized how we approach construction, woodworking, metalworking, and even DIY projects. While they may seem straightforward, their inner mechanisms are a fascinating blend of engineering and physics. Understanding how a drill machine works not only deepens your appreciation for this essential tool but also empowers you to use it more effectively. In this comprehensive blog, we’ll dive into the principles, components, and processes that make a drill machine function.
A drill machine is a power tool designed to create holes or drive fasteners into various materials. It achieves this by using rotational motion combined with downward pressure. Drill machines can be powered manually, electrically, or pneumatically, depending on their design and purpose.
At its core, a drill machine operates on the principles of rotational motion and mechanical energy transfer. Here’s a breakdown of the essential concepts:
The motor or manual force generates rotational motion, which spins the drill bit. This motion enables the bit to cut into materials.
Torque is the rotational force that allows the drill bit to penetrate tough materials. Higher torque is essential for drilling into dense surfaces like concrete or metal.
The user applies axial force, or downward pressure, to push the drill bit into the material, ensuring efficient cutting or drilling.
The drill bit, designed with sharp edges, removes material as it rotates. The removed material (wood shavings, metal chips, or concrete dust) is ejected from the hole, leaving a clean, precise opening.

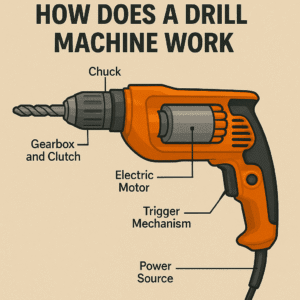

A drill machine consists of several interconnected components, each playing a vital role in its operation. Below are the primary parts and their functions:
The motor is the heart of an electric drill. It converts electrical energy into mechanical energy, driving the rotation of the chuck and drill bit.
The chuck is the part that holds the drill bit in place. It is adjustable to accommodate bits of various sizes.
The gearbox controls the drill’s speed and torque. By adjusting the gear ratio, the drill can switch between high-speed, low-torque settings (for softer materials) and low-speed, high-torque settings (for tougher materials).
The trigger switch activates the motor and controls the drill’s speed. Many modern drills feature variable speed triggers that adjust rotation speed based on the pressure applied.
The handle provides the user with control and stability. Ergonomic designs reduce fatigue during prolonged use.
Drill machines derive power from different sources:
The clutch prevents overdriving screws or overloading the motor by disengaging the drive mechanism when resistance exceeds a certain threshold.
Vents allow heat to escape, preventing the motor from overheating during prolonged use.
Modern drills often include auxiliary features such as LED lights for visibility, reverse switches for screw removal, and depth stops for precise drilling.
Drill machines use different mechanisms to suit various applications. Below are some common types:
This is the simplest mechanism, where the bit rotates continuously to cut into the material. It’s ideal for general-purpose drilling in wood, plastic, and light metals.
Hammer drills combine rotational motion with a pulsating hammering action. This mechanism is effective for drilling into masonry or concrete by chipping away at the material as the bit rotates.
Rotary hammers are similar to hammer drills but use a piston-driven hammering mechanism. They deliver more powerful blows, making them suitable for heavy-duty applications like demolition.
Impact drivers use a combination of rotational motion and concussive torque bursts to drive screws and bolts. This mechanism excels in fastening tasks requiring high torque.
Let’s break down the operation of a drill machine, from activation to completion:
The user connects the drill to its power source:
The user selects an appropriate drill bit and secures it in the chuck by tightening it.
The user presses the trigger switch, sending power to the motor. For variable speed drills, the pressure on the trigger determines the rotation speed.
The motor drives the rotation of the chuck, which spins the drill bit at the desired speed. If a hammering mechanism is engaged, the drill simultaneously delivers pulsating blows.
The user applies steady axial force to push the drill bit into the material. The sharp edges of the bit cut into the material, ejecting debris through flutes along the bit.
Some drills feature a depth stop or gauge to ensure consistent hole depth.
Once the desired depth is reached, the user stops the drill, reverses the rotation (if needed), and carefully removes the bit from the hole.
The efficiency and effectiveness of a drill machine depend on several factors:
A sharp, high-quality bit ensures cleaner holes and reduces strain on the motor.
Choosing the right speed and torque settings for the material optimizes performance and prevents damage.
Soft materials (like wood) are easier to drill than dense or abrasive materials (like concrete or steel).
Proper drilling technique, including steady pressure and correct alignment, enhances accuracy and tool longevity.
Regular cleaning, lubrication, and inspection keep the drill functioning smoothly.
Modern drill machines incorporate advanced technologies to improve functionality and user experience:
Brushless motors offer higher efficiency, longer lifespan, and reduced maintenance compared to brushed motors.
Some drills feature digital interfaces for adjusting speed, monitoring battery life, and selecting modes.
Lithium-ion batteries provide longer runtime, faster charging, and lighter weight than traditional battery types.
Innovative designs minimize noise and vibration, ensuring a more comfortable user experience.
Safety is a critical consideration in drill machine design. Common safety features include:
Drill machines are used in countless fields, including:
A drill machine’s operation is a seamless combination of engineering principles and mechanical design. From its motor to its chuck, every component works together to deliver precision, power, and efficiency. Understanding how a drill machine works not only helps you use it effectively but also ensures you maintain it properly for years of reliable service.
Whether you’re drilling into wood, metal, or concrete, knowing the inner workings of your drill gives you the confidence to tackle any project with skill and safety.
